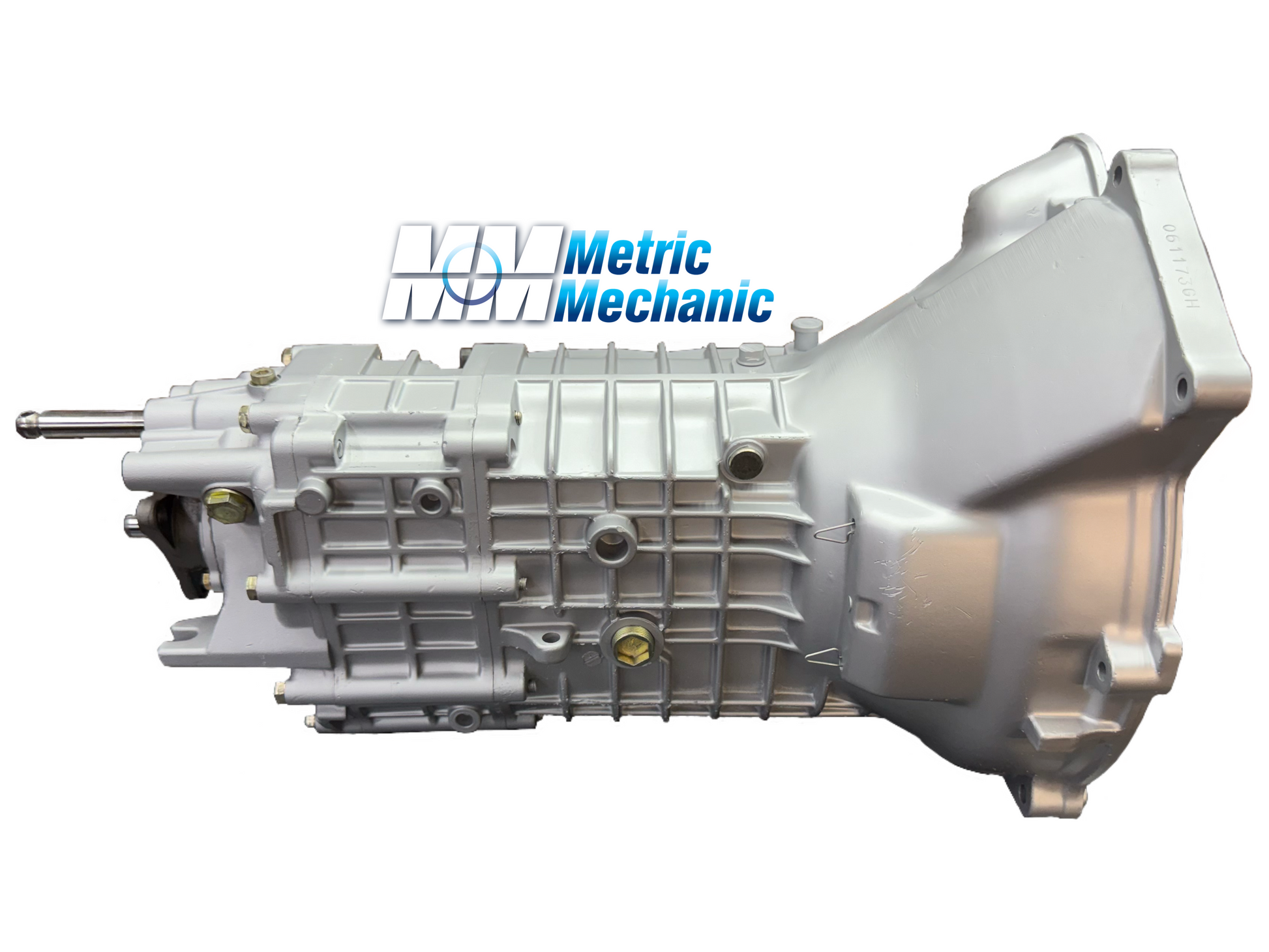

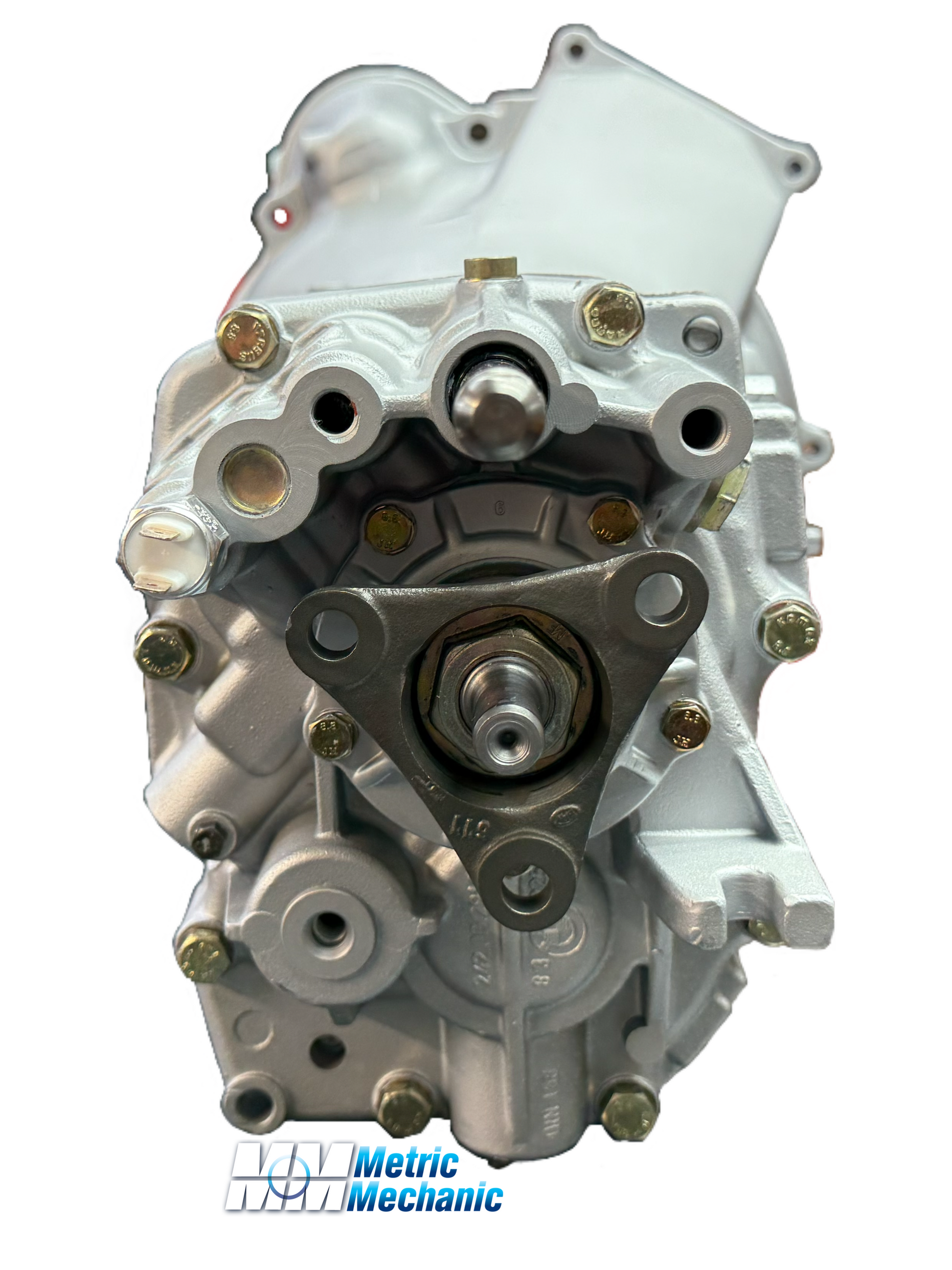

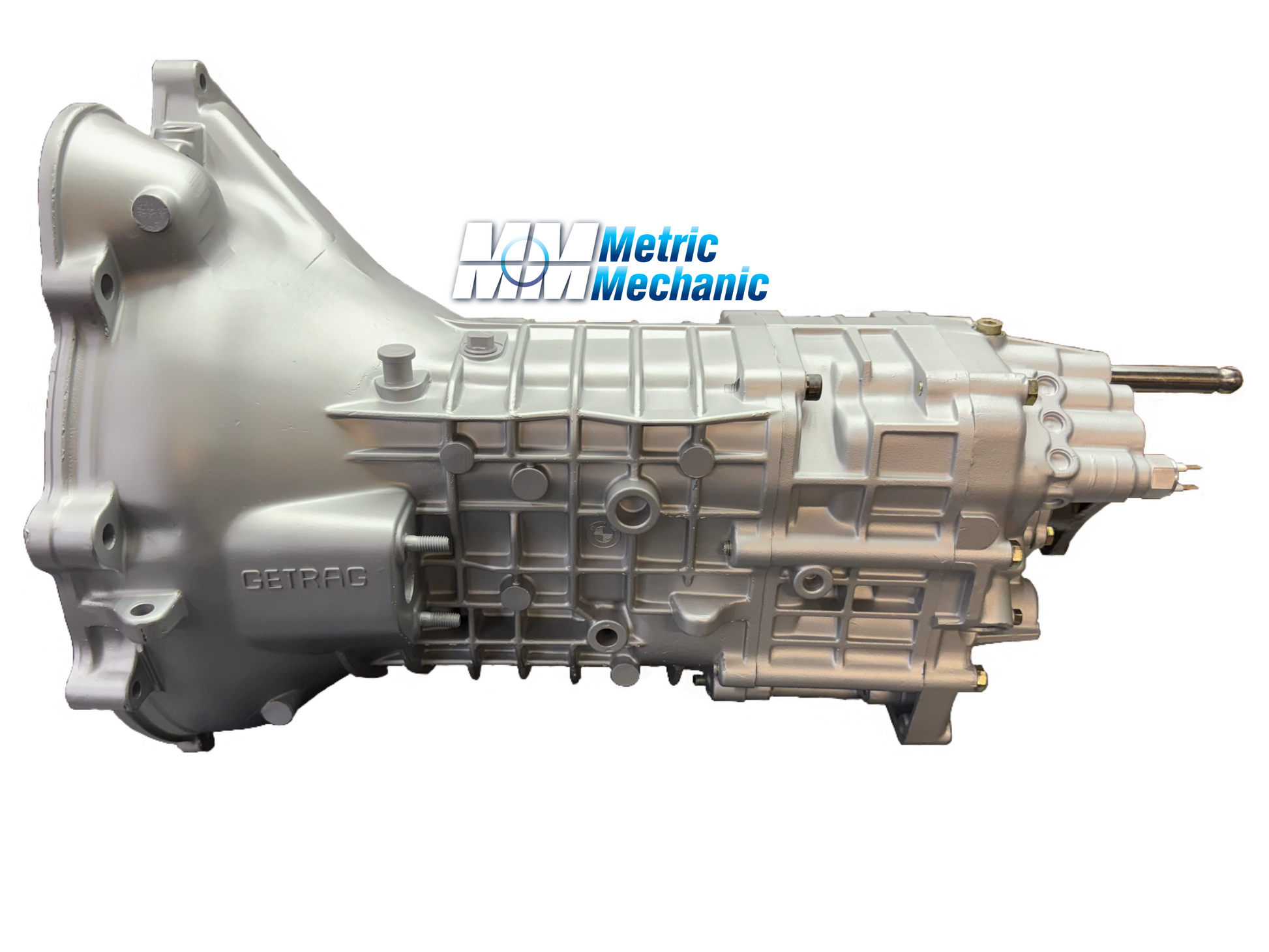

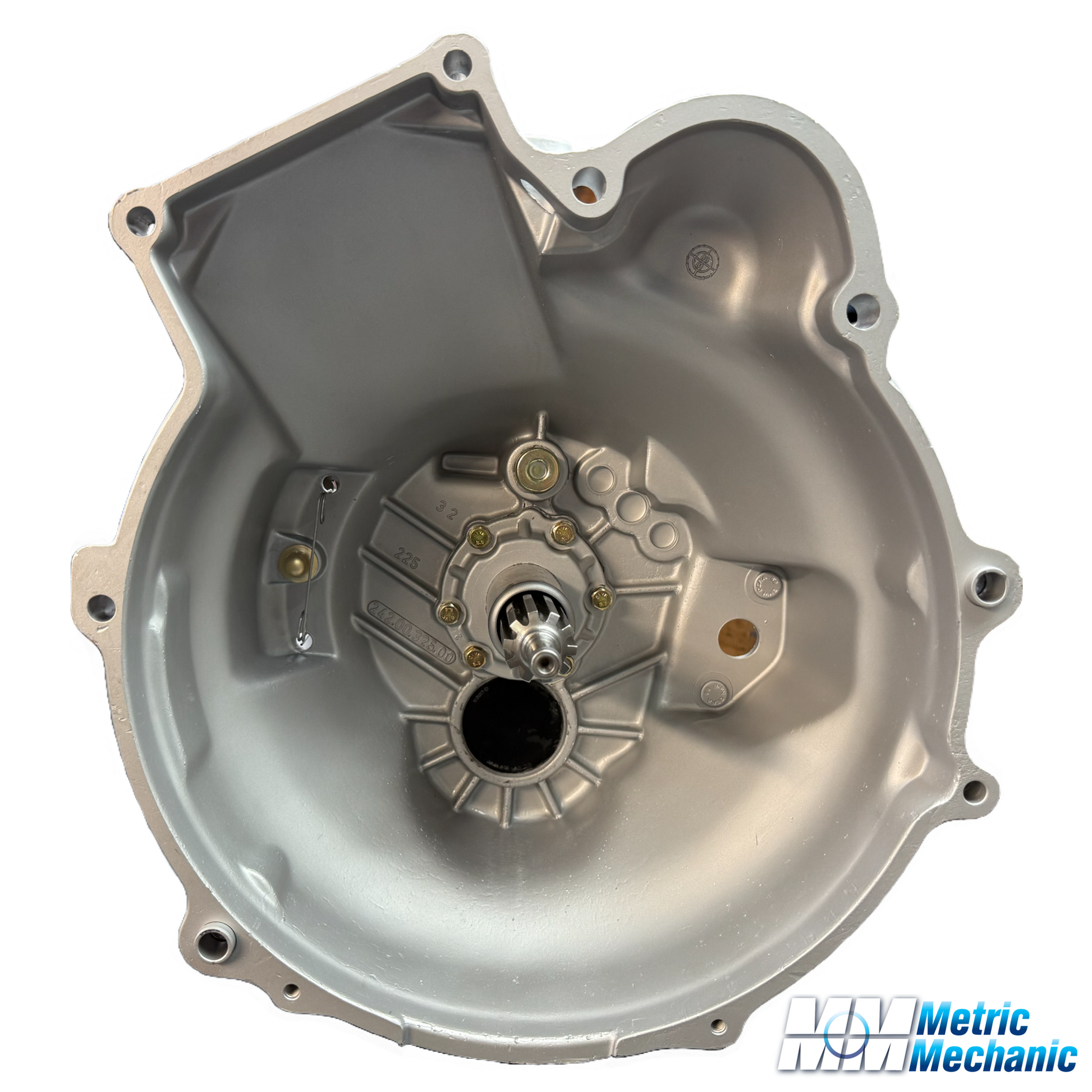

MM Ultimate Getrag 245 "Dogleg" Close Ratio Transmission

T4 - Used in 2002's with a 5 Speed 245 CR Conversion
Compatible with the following models:
2002, 2002ti, 320i - 5 Speed Close Ratio

Note: We rebuild ONLY with a 3 bolt flange. If you have a 4 bolt flange, you need to convert to the 3 bolt flange and purchase the MM 3 bolt slip yoke driveshaft, plus 6 bolt Guibo with bolts and nuts.

Features:

• Borg-Warner Synchronizers
• Select machining steps to increase the applied pressure to the synchronizer for faster gear engagement and 50 times synchronizer life
• Blueprinted deglazed synchronizers
• Tapered roller bearings to support the layshaft with 10 times the bearing life
• Improved Viton seals
• Exceptional performance over a factory or conventional 245 build


⚠️Warning: Never use a clutch pedal stop.

Clutch pedal stops prevent the clutch from fully disengaging, causing premature synchronizer failure and rounding of the gear and operating sleeve engagement teeth. This type of damage is severe and will result in additional, avoidable costs during an MM Ultimate transmission rebuild.

Check out our MM Ultimate Getrag 245 "Dogleg" Close Ratio Transmission booklet for more details!

Core Deposit of $1,500 is required when ordering this transmission.

CALL TO ORDER
573-836-4033 (Jim)
573-765-1269 (Shop)
